Polymer 3D Printing

HP Multi Jet Fusion utilizes powdered thermoplastic material to create accurate, complex, and finely detailed parts. Our high-quality thermoplastics deliver optimal mechanical properties and chemical resistance, producing parts with balanced property profiles and strong structures.

When manufactured layer-by-layer in a powder bed, this unique process uses a combination of binding agents and energy, allowing for several levels of biocompatibility.

Endeavor 3D's Partners

Excellence through Collaboration

Endeavor 3D is not just a leading manufacturer, but a trusted partner with the industry’s top innovators. We are a HP Digital Manufacturing Partner and a strategic partner with DyeMansion for advanced post-processing solutions.

Polymer Material Selection

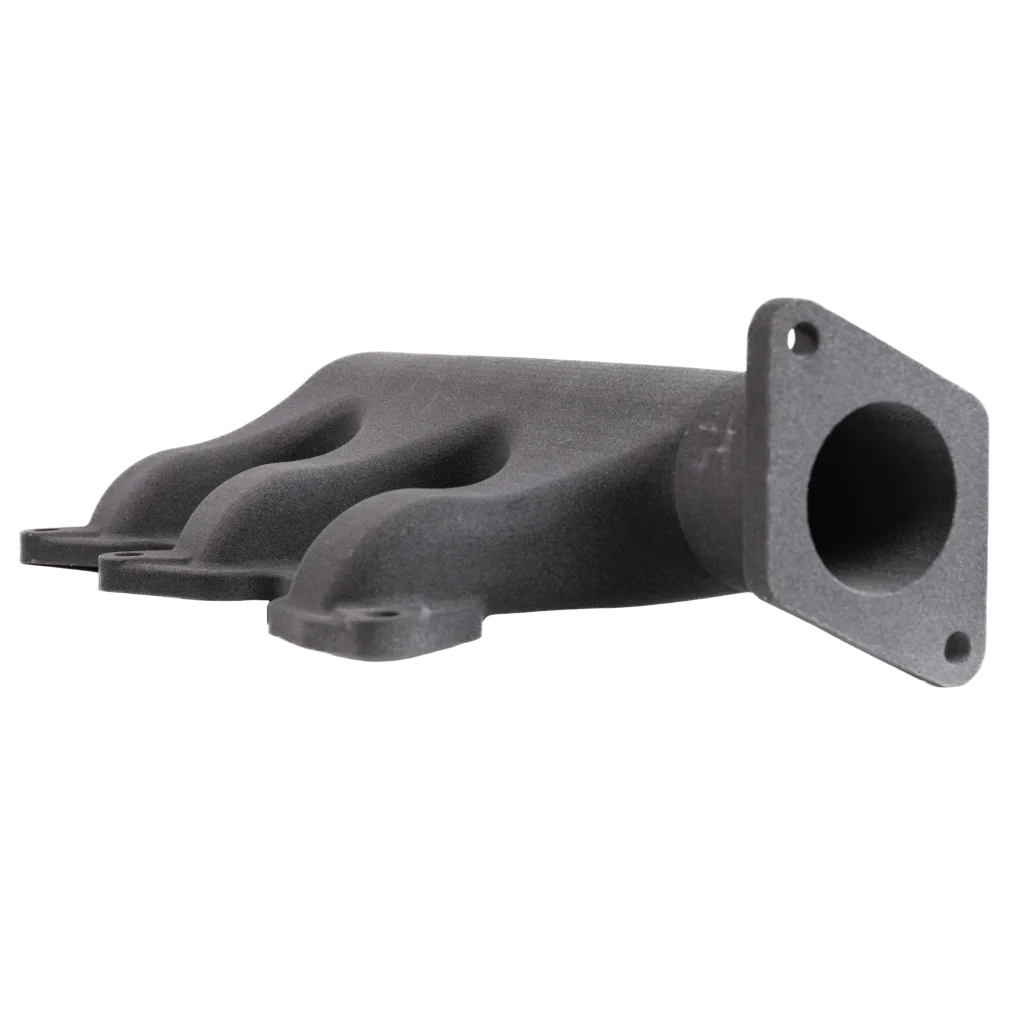

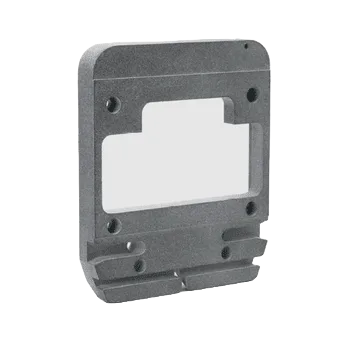

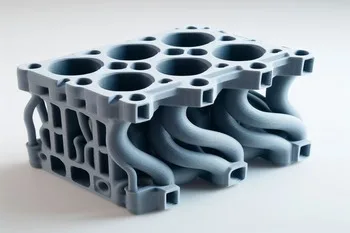

Nylon PA 12

An engineering grade thermoplastic for high-density parts with extreme dimensional accuracy and fine detail for functional prototyping and final parts. Nylon PA 12 has excellent chemical resistance to oils, greases, aliphatic hydrocarbons and alkalis.

  • Complex assemblies
  • Lattice structures
  • Housing
  • Enclosures & connectors

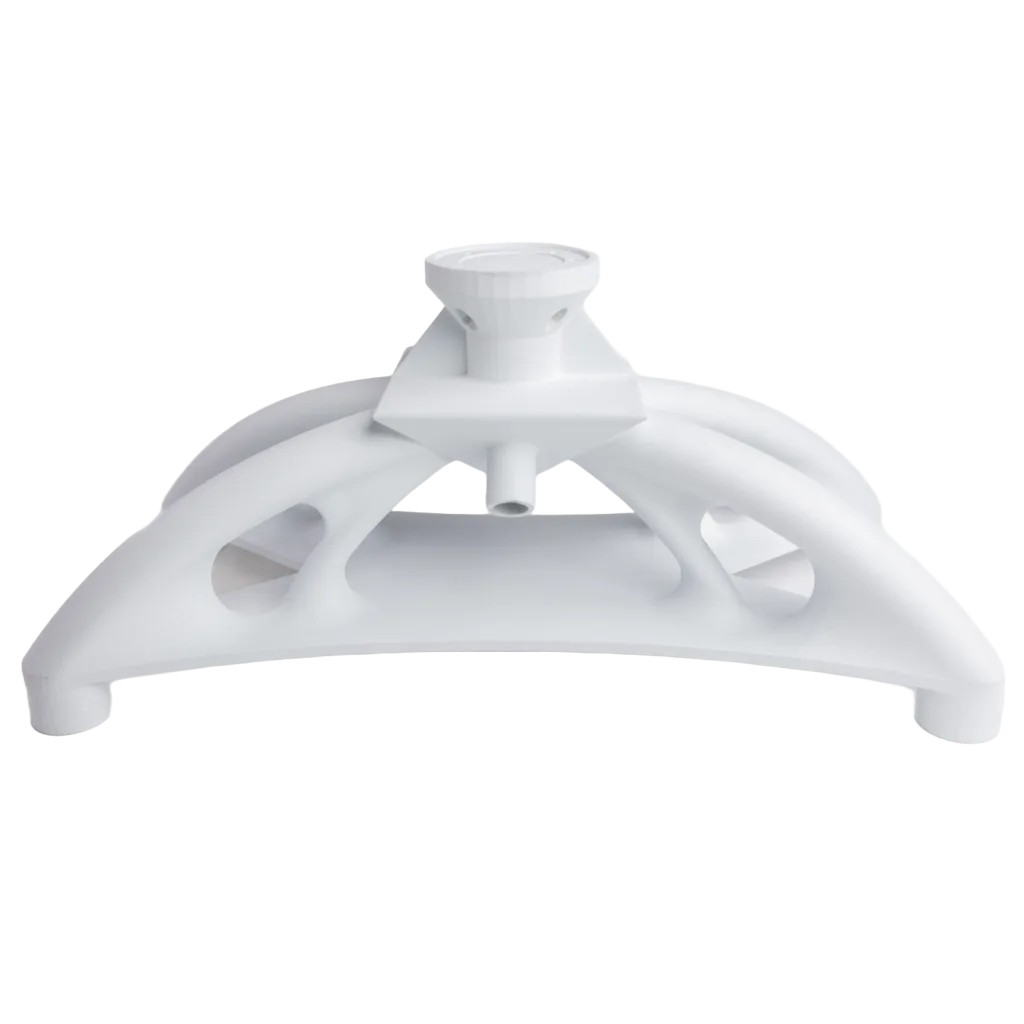

Nylon PA 12 White

This engineering-grade thermoplastic yields high-quality functional production parts in a premium white finish. PA 12 W (Pure White) is ideal for strong, complex parts with balanced property profiles and strong structures. In addition to high consistency, this robust material has high reusability.

  • Consumer goods
  • Prosthetics & medical devices
  • Fashion & wearables
  • Household appliances

Nylon PA 11

This thermoplastic delivers optimal mechanical properties, and is known for producing strong, ductile, functional parts. PA 11 also provides excellent chemical resistance and enhanced elongation-at-break. Ideal for impact resistance and ductility.

  • Prosthesis
  • Insoles
  • Sporting goods
  • Hinges

BASF ULTRASINT® TPU

This MJF specific thermoplastic from BASF offers high wear/abrasion resistance, and is ideal for applications needing rubber-like flexibility and excellent shock absorption. TPU 88A – BASF ULTASINT 3D prints with high accuracy and detail, in addition to having smooth surfaces.

  • Soft touch grips
  • Handheld tools
  • Flexible consumer goods
  • Automotive hoses and wiring insulation

Advantages of Using Endeavor 3D Materials

We offer a diverse selection of advanced polymer materials, each with its own unique properties and advantages. We’ll eliminate the guesswork when it comes to finding the right material for your manufacturing projects.

Here’s what to expect when you partner with Endeavor 3D:

  • A Commitment to Quality: Endeavor 3D polymer materials are rigorously tested to ensure they meet the highest standards of performance and reliability. By combining our experienced quality control team with a state-of-the-art quality assurance laboratory, you can be confident that every part is thoroughly inspected.
  • Expert Support: At Endeavor 3D, we understand that every customer has unique needs and pain points. Choosing the right material for your application is pivotal in delivering meaningful results. Our team of experts will work hard throughout the entire production process to understand all the factors that drive success. That is because we measure our success by your success.
  • Versatility: We offer an extensive selection of polymer materials to suit a variety of applications, from functional prototypes to end-use products. Whether you need a material that is strong and durable, flexible and impact-resistant, or biocompatible, we have the right material for you.

HP Polymer Selection Guide

Detailed Specifications

PA-12

PropertiesTest MethodEnglishMetric
Tensile Strength, Max Load, XYASTM D6386960 psi48 MPa
Tensile Strength, Max Load, ZASTM D6386960 psi48 MPa
Tensile Modulus, XYASTM D638247 ksi1700 MPa
Tensile Modulus, ZASTM D638261 ksi1800 MPa
Elongation at Break, XYASTM D63820%20%
Elongation at Break, ZASTM D63815%15%
Izod impact notched (@ 3.2 mm, 23ºC), XYZASTM D256 Test Method A3.5 KJ/m23.5 KJ/m2
Flexural strength (@ 5%), XYASTM D7909425 psi65 MPa
Flexural strength (@ 5%), ZASTM D79010150 psi70 MPa
PropertiesTest MethodEnglishMetric
Heat Deflection Temperature (@ 0.45 MPa, 66 psi), XYASTM D648 Test Method A347°F175°C
Heat Deflection Temperature (@ 0.45 MPa, 66 psi), ZASTM D648 Test Method A347°F175°C
Tensile Modulus, XYASTM D638247 ksi1700 MPa
Heat Deflection Temperature (@ 1.82 MPa, 264 psi), XYASTM D648 Test Method A203°F95°C
Heat Deflection Temperature (@ 1.82 MPa, 264 psi), ZASTM D648 Test Method A223°F106°C
PropertiesTest MethodEnglishMetric
Powder melting point (DSC)ASTM D3418369°F187°C
Particle sizeASTM D345160 μm60 μm
Bulk density of powderASTM D1895N/A0.425 g/cm3
Density of partsASTM D792N/A1.01 g/cm3

PA-12 White

PropertiesTest MethodEnglishMetric
Tensile strength, XYASTM D6387106 psi49 MPa
Tensile strength, ZASTM D6386526 psi45 MPa
Tensile Modulus, XYASTM D638275 ksi1900 MPa
Tensile Modulus, ZASTM D638268 ksi1850 MPa
Elongation at Yield, XYASTM D63811%11%
Elongation at Yield, ZASTM D6388%8%
Elongation at break, XYASTM D63817%17%
Elongation at break, ZASTM D6389%9%
Impact strength (KJ/m2), XYASTM D2564.84.8
Impact strength (KJ/m2), ZASTM D2564.14.1
PropertiesTest MethodEnglishMetric
Powder melting point (DSC)ASTM D3418369°F187°C
Particle sizeASTM D345160 μm60 μm
Bulk density of powderASTM D1895N/A0.425 g/cm3
Density of partsASTM D792N/A1.01 g/cm3

PA11

PropertiesTest MethodEnglishMetric
Tensile Strength, Max Load, XY, XZ, YX, YZASTM D6387542 psi52 MPa
Tensile Strength, Max Load, ZX, XYASTM D6387542 psi52 MPa
Tensile Modulus, XY, XZ, YX, YZASTM D638261 ksi1800 MPa
Tensile Modulus, ZX, ZYASTM D638261 ksi1800 MPa
Elongation at Break,11 XY, XZ, YX, YZASTM D63850%50%
Elongation at Break, XY, XZ, YX, YZASTM D63810%10%
Elongation at Break, ZX, ZYASTM D63835%35%
Flexural strength (@ 5%), XY, XZ, YX, YZ, ZX, ZYASTM D79010150 psi70 MPa
Flexural modulus, XY, XZ, YX, YZ, ZX, ZYASTM D790261 ksi1800 MPa
Izod impact notched (@ 3.2 mm, 23°C), XY, XZ, YX, YZASTM D256 Test Method A5 kJ/m25 kJ/m2
Izod impact notched (@ 3.2 mm, 23°C), ZX, ZYASTM D256 Test Method A4.5 kJ/m24.5 kJ/m2
Shore Hardness D, XY, XZ, YX, YZ, ZX, ZYASTM D22408080
PropertiesTest MethodEnglishMetric
Heat deflection temperature (@ 0.45 MPa, 66 psi), XY, XZ, YX, YZ, ZX, ZYASTM D648 Test Method A365°F185°C
Heat deflection temperature (@ 1.82 MPa, 264 psi), XY, XZ, YX, YZ, ZX, ZYASTM D648 Test Method A129°F54°C
PropertiesTest MethodEnglishMetric
Powder melting point (DSC)ASTM D3418396°F202°C
Particle sizeASTM D345154 μm54 μm
Bulk density of powderASTM D18950.017 lb/in30.48 g/cm3
Density of partsASTM D7920.038 lb/cm31.05 g/in3

BASF ULTRASINT TPU

PropertiesTest MethodTypical Values XY-DirectionTypical Values Z-Direction
Tensile Strength/ MPaDIN 53504, S297
Tensile Elongation at Break / %DIN 53504, S2220120
Tear Resistance (Trouser)/ kN/mDIN ISO 34 - 1, A2016
Tear Resistance (Graves)/ kN/mDIN ISO 34 - 1, B3632
Tensile Modulus/MPa>
ISO 527-2, 1A7585
Flexural Modulus/ kN/mDIN ISO 1787575
Compression Set B (23°C, 72h) / %DIN ISO 815 - 12020
Rebound Resilience / %ASTM 26326363
Hardness Shore ADIN ISO 7619 - 18888
Abrasion Resistance / mm³DIN ISO 4649140100
DensityN/A1.1g/cm³
Charpy Impact Strength (notched, -23 °C) / kJ/m2 DIN EN ISO 179 - 1Partial BreakNo Break
Charpy Impact Strength (notched, -23 °C) / kJ/m2DIN EN ISO 179 - 12129
Rossflex testing (100k cycles, 23°C)ASTM D1052No Cut Growth
Rossflex testing (100k cycles, -10°C)ASTM D1052No Cut Growth
Vicat/A (10 N) / °CDIN EN ISO 3068496
UL FlammabilityUL 94HB (1.6-4.2 mm)HB (1.6-4.2 mm)

Need more information? Download the full spec sheet HERE
