Why 3D print metals with Metal Jet?
HP’s metal jetting technology can be leveraged for the fabrication of complex metal parts with high precision and efficiency. It finds its application in various industries such as robotics, automotive, medical and consumer goods, where the demand for lightweight, durable and customizable metal part is high.
What is HP Metal Jet?
HP Metal jet is a 3D printing process that utilizes powdered metal materials to create accurate, complex, and finely detailed parts. They are manufactured in the powder bed, layer-by-layer, and solidified using HP’s unique combination of binding agents and energy.
Learn more about HP Metal Jet 3D printing technology HERE
Applications
Opportunities in every industry
Rapid Prototyping
Rapid Production
Jigs & Fixtures
Manufacturing Guides
Tools
Lightweighting
Housings
Brackets
Under-the-hood applications
Subsea or hazardous environment applications
Downhole tools
Connectors
Protective devices
Intake manifolds
Snapshot
Key Specifications and markets
MULTI JET KEY SPECIFICATIONS

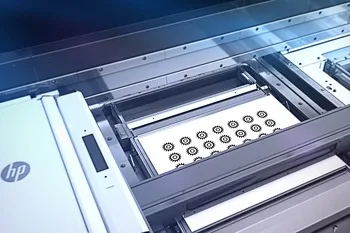

Build Platform Volume = 430 x 309 x 200 mm
Compatible Materials = 316L and 17-4PH

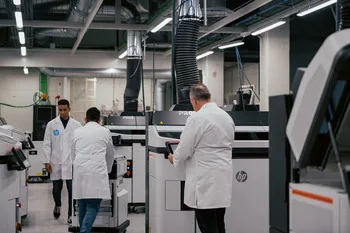

Building Speed = 1990 cc/hr
Job Processing Resolution (x,y) = 1200 dpi

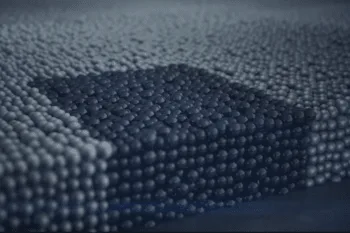

Layer Thickness = 35 – 140 µm
More About Metal Sintering
Important information about the process
Our Elnik 3045 batch furnace and a CM continuous furnace are engineered specifically to process metal binder jet parts. With the full suite of analytical tools required to analyze sintered parts, we can also develop and modify sintering cycles in-house. A typical sintering cycle is between 22 and 28 hours long depending on the specific alloy. With our sintering furnaces, we can sinter in both a hydrogen and nitrogen atmosphere, allowing us to develop additional materials in the future depending on the business case. The optimal part size for our sintering furnaces is roughly the size of a baseball but we have the capability to sinter larger parts with modifications to the cycle length.
Our Features, Your Benefits!
What does metal 3D printing mean for you?
Speed
Accelerates product development (prototyping), improves speed-to-market, enables just-in-time and “on demand” applications
Detailed Accuracy
Utilize thinner walls, enables production of small, highly detailed parts and ensures that tolerances meet specifications
Smooth Finish
High-quality finished parts look professional, parts can be embossed/debossed
Design Freedom
Eliminates support improve part design, assists with lightweighting, enables complex parts and integrated assemblies
Low Part Cost
Highly cost effective at low to medium quantities.Bring more new products to market more quickly and with less risk
Choose Your Color
Color gets attention, differentiates, and sells. Utilizing color in finished parts can increase functionality and value
Excel in Collaboration
Endeavor 3D partners with the additive manufacturing industry’s top innovators
Get quality parts, FAST!
Endeavor 3D’s mission is to revolutionize part design and manufacturing by streamlining workflows and introducing new capabilities for 3D printing.

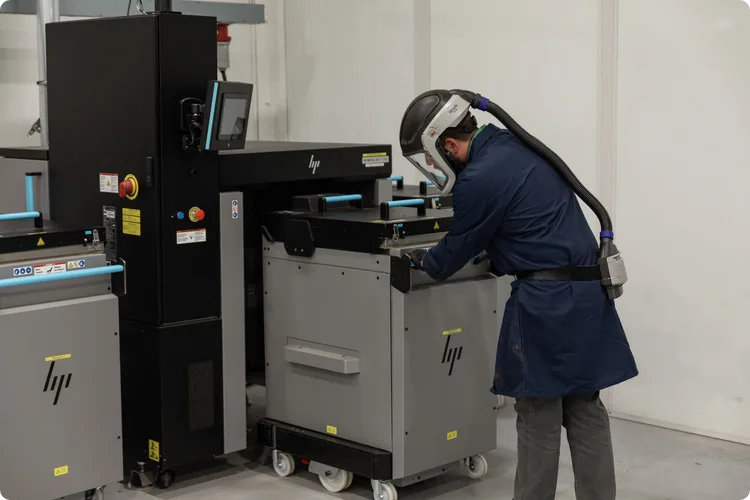

We have a fleet of HP Metal Jet industrial 3D printers in our 65,000 sq ft automated factory. These devices enable us to provide our customers speed, quality, cost and novel functionality, across a wide range of industries and applications.
Material Selection
Endeavor 3D offers a range of engineering-grade materials
Metal Materials
Detailed Specifications
Key properties for each of our materials

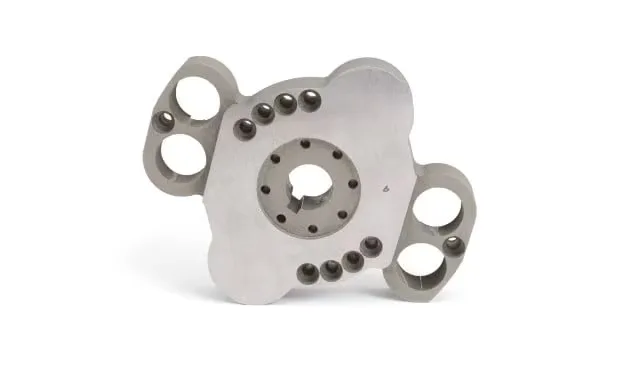

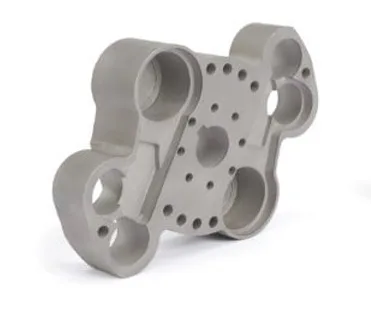

17-4PH
| Properties | Test Method | HP Metal Jet (H900) | Benchmark MPIF (H900) | |
|---|---|---|---|---|
| Ultimate Tensile Strength (MPa) | XYZ | ASTM E8 | µ=1277 (min=1261) | ≥1070 |
| Yield Strength (MPa) | XYZ | µ=1152 (min=1136) | ≥1970 | |
| Elongation(%) | XYZ | µ=6% (min=4%) | ≥14% | |
| Surface Roughness (Ra) 2) | XYZ | 7.8 µm (typical) | ||
| Hardness (HRC) | ASTM E18 | µ=40 (min=33) | 35 (typical) | |
| Density | g/cc | ASTM B311 | µ=7.65 (min=7.63) | 7.5 (typical) |
| % | >96% |

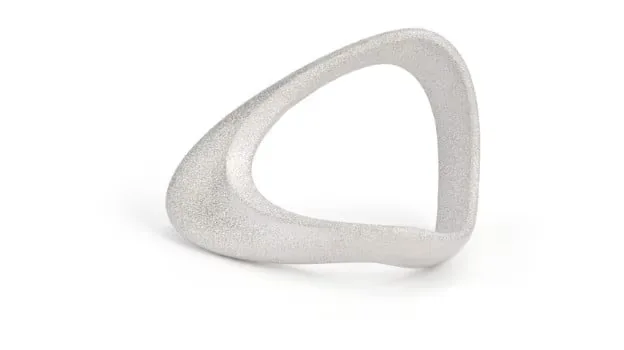

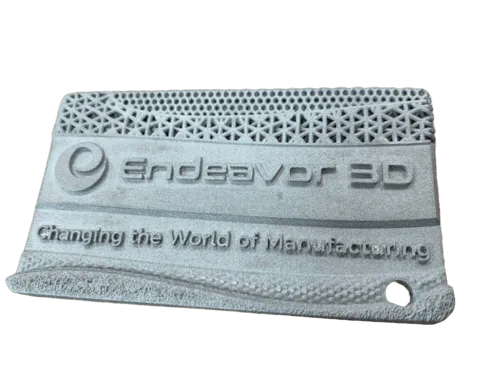

316L
| Properties | Test Method | HP Metal Jet (as sintered) | Benchmark MPIF 35 | |
|---|---|---|---|---|
| Ultimate Tensile Strength (MPa) | XYZ | ASTM E8 | µ=561 (min=557) | ≥450 |
| Yield Strength (MPa) | XYZ | µ=227 (min=216) | ≥140 | |
| Elongation(%) | XYZ | µ=61% (min=59%) | ≥40% | |
| Surface Roughness (Ra) 2) | XYZ | 7.7 µm (typical) | ||
| Hardness (HRC) | ASTM E18 | µ=65 (min=56) | 67 (typical) | |
| Density | g/cc | ASTM B311 | µ=7.86 (min=7.84) | 7.6 (typical) |
| % | >96% |
YOUR Contract Manufacturing Partner
Leading with innovative additive manufacturing technology
Endeavor 3D utilizes cutting-edge technology from the additive manufacturing industry’s top innovators. Our capabilities deliver the highest functionality for real-world applications.
