Material Selection
Endeavor 3D offers a range of engineering-grade materials
Polymer Materials

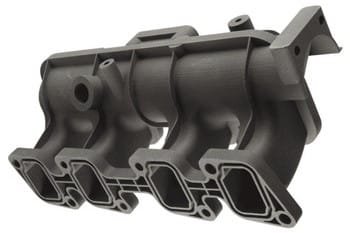

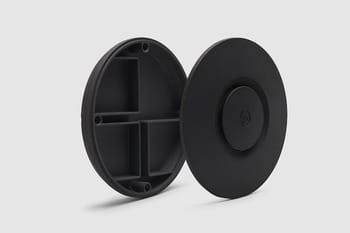

PA-12
An engineering grade thermoplastic for high-density parts with extreme dimensional accuracy and fine detail for functional prototyping and final parts. This strong thermoplastic is ideal for complex assemblies, lattice structures, housing, enclosures and connectors, and optimal for post finishing processes – has excellent chemical resistance to oils, greases, aliphatic hydrocarbons and alkalies.

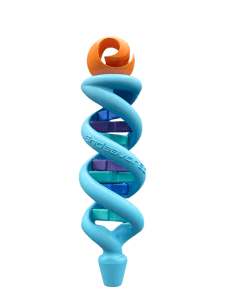

PA 12 W (PURE WHITE)
This engineering-grade thermoplastic yields high-quality functional production parts in a premium white finish. PA 12 W (Pure White) is ideal for strong, complex parts with balanced property profiles and strong structures. In addition to high consistency, this robust material has high reusability. Designed for parts across industries such as healthcare and consumer goods, with applications such as prosthetics, medical equipment, fashion and wearables, and household appliances.

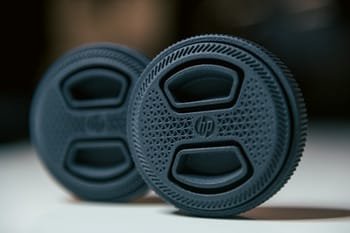

PA11
This thermoplastic delivers optimal mechanical properties, and is known for producing strong, ductile, functional parts. PA 11 also provides excellent chemical resistance and enhanced elongation-at-break. Ideal for impact resistance and ductility for prostheses, insoles, sports goods, snap fits, living hinges, and more.

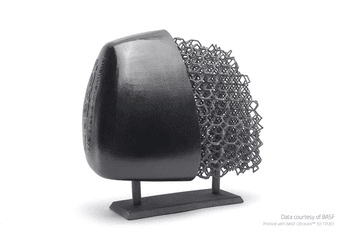

BASF ULTRASINT® TPU
This MJF specific thermoplastic from BASF offers high wear/abrasion resistance, and is ideal for applications needing rubber-like flexibility and excellent shock absorption. TPU 88A – BASF Ultrasint 3D prints with high accuracy and detail, in addition to having smooth surfaces.
Metal Materials
Our Technologies
Endeavor 3D offers polymer and metal additive manufacturing
Polymer 3D Printing with HP MultiJet Fusion
HP’s thermoplastics deliver optimal mechanical properties and chemical resistance, producing parts with balanced property profiles and strong structures, while also offering several levels of biocompatibility.
Learn more about HP MJF 3D printing technology HERE

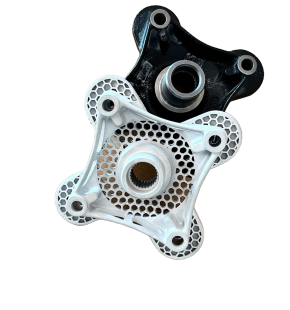

Metal 3D Printing with HP MetalJet
HP’s Metal Jetting technology can be leveraged for the fabrication of complex metal parts with high precision and efficiency. It finds its application in various industries such as robotics, automotive, medical, and consumer goods, where the demand for lightweight, durable and customizable metal parts is high.
Learn more about HP Metal Jet 3D printing technology HERE
Our Features, Your Benefits
How can our additive manufacturing services help you win?
Speed
Accelerates product development (prototyping), improves speed-to-market, enables just-in-time and “on demand” applications
Detailed Accuracy
Utilize thinner walls, enables production of small, highly detailed parts and ensures that tolerances meet specifications
Smooth Finish
High-quality finished parts look professional, parts can be embossed/debossed
Design Freedom
Eliminates support improve part design, assists with lightweighting, enables complex parts and integrated assemblies
Low Part Cost
Highly cost effective at low to medium quantities.Bring more new products to market more quickly and with less risk

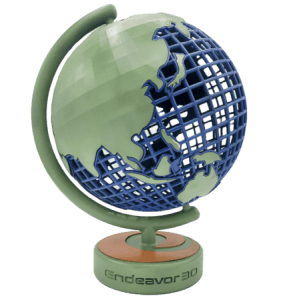

Choose Your Color
Color gets attention, differentiates, and sells. Utilizing color in finished parts can increase functionality and value
Detailed Specifications
Key properties for each of our materials
We think you'll be stunnedsurprisedamazed when you see our material specs!
Get engineering-grade materials and all the benefits of 3D printing.
PA-12
| Properties | Test Method | English | Metric |
|---|---|---|---|
| Tensile Strength, Max Load, XY | ASTM D638 | 6960 psi | 48 MPa |
| Tensile Strength, Max Load, Z | ASTM D638 | 6960 psi | 48 MPa |
| Tensile Modulus, XY | ASTM D638 | 247 ksi | 1700 MPa |
| Tensile Modulus, Z | ASTM D638 | 261 ksi | 1800 MPa |
| Elongation at Break, XY | ASTM D638 | 20% | 20% |
| Elongation at Break, Z | ASTM D638 | 15% | 15% |
| Izod impact notched (@ 3.2 mm, 23ºC), XYZ | ASTM D256 Test Method A | 3.5 KJ/m2 | 3.5 KJ/m2 |
| Flexural strength (@ 5%), XY | ASTM D790 | 9425 psi | 65 MPa |
| Flexural strength (@ 5%), Z | ASTM D790 | 10150 psi | 70 MPa |
| Properties | Test Method | English | Metric |
|---|---|---|---|
| Heat Deflection Temperature (@ 0.45 MPa, 66 psi), XY | ASTM D648 Test Method A | 347°F | 175°C |
| Heat Deflection Temperature (@ 0.45 MPa, 66 psi), Z | ASTM D648 Test Method A | 347°F | 175°C |
| Tensile Modulus, XY | ASTM D638 | 247 ksi | 1700 MPa |
| Heat Deflection Temperature (@ 1.82 MPa, 264 psi), XY | ASTM D648 Test Method A | 203°F | 95°C |
| Heat Deflection Temperature (@ 1.82 MPa, 264 psi), Z | ASTM D648 Test Method A | 223°F | 106°C |
| Properties | Test Method | English | Metric |
|---|---|---|---|
| Powder melting point (DSC) | ASTM D3418 | 369°F | 187°C |
| Particle size | ASTM D3451 | 60 μm | 60 μm |
| Bulk density of powder | ASTM D1895 | N/A | 0.425 g/cm3 |
| Density of parts | ASTM D792 | N/A | 1.01 g/cm3 |
PA-12 White
| Properties | Test Method | English | Metric |
|---|---|---|---|
| Tensile strength, XY | ASTM D638 | 7106 psi | 49 MPa |
| Tensile strength, Z | ASTM D638 | 6526 psi | 45 MPa |
| Tensile Modulus, XY | ASTM D638 | 275 ksi | 1900 MPa |
| Tensile Modulus, Z | ASTM D638 | 268 ksi | 1850 MPa |
| Elongation at Yield, XY | ASTM D638 | 11% | 11% |
| Elongation at Yield, Z | ASTM D638 | 8% | 8% |
| Elongation at break, XY | ASTM D638 | 17% | 17% |
| Elongation at break, Z | ASTM D638 | 9% | 9% |
| Impact strength (KJ/m2), XY | ASTM D256 | 4.8 | 4.8 |
| Impact strength (KJ/m2), Z | ASTM D256 | 4.1 | 4.1 |
| Properties | Test Method | English | Metric |
|---|---|---|---|
| Powder melting point (DSC) | ASTM D3418 | 369°F | 187°C |
| Particle size | ASTM D3451 | 60 μm | 60 μm |
| Bulk density of powder | ASTM D1895 | N/A | 0.425 g/cm3 |
| Density of parts | ASTM D792 | N/A | 1.01 g/cm3 |
PA11
| Properties | Test Method | English | Metric |
|---|---|---|---|
| Tensile Strength, Max Load, XY, XZ, YX, YZ | ASTM D638 | 7542 psi | 52 MPa |
| Tensile Strength, Max Load, ZX, XY | ASTM D638 | 7542 psi | 52 MPa |
| Tensile Modulus, XY, XZ, YX, YZ | ASTM D638 | 261 ksi | 1800 MPa |
| Tensile Modulus, ZX, ZY | ASTM D638 | 261 ksi | 1800 MPa |
| Elongation at Break,11 XY, XZ, YX, YZ | ASTM D638 | 50% | 50% |
| Elongation at Break, XY, XZ, YX, YZ | ASTM D638 | 10% | 10% |
| Elongation at Break, ZX, ZY | ASTM D638 | 35% | 35% |
| Flexural strength (@ 5%), XY, XZ, YX, YZ, ZX, ZY | ASTM D790 | 10150 psi | 70 MPa |
| Flexural modulus, XY, XZ, YX, YZ, ZX, ZY | ASTM D790 | 261 ksi | 1800 MPa |
| Izod impact notched (@ 3.2 mm, 23°C), XY, XZ, YX, YZ | ASTM D256 Test Method A | 5 kJ/m2 | 5 kJ/m2 |
| Izod impact notched (@ 3.2 mm, 23°C), ZX, ZY | ASTM D256 Test Method A | 4.5 kJ/m2 | 4.5 kJ/m2 |
| Shore Hardness D, XY, XZ, YX, YZ, ZX, ZY | ASTM D2240 | 80 | 80 |
| Properties | Test Method | English | Metric |
|---|---|---|---|
| Heat deflection temperature (@ 0.45 MPa, 66 psi), XY, XZ, YX, YZ, ZX, ZY | ASTM D648 Test Method A | 365°F | 185°C |
| Heat deflection temperature (@ 1.82 MPa, 264 psi), XY, XZ, YX, YZ, ZX, ZY | ASTM D648 Test Method A | 129°F | 54°C |
| Properties | Test Method | English | Metric |
|---|---|---|---|
| Powder melting point (DSC) | ASTM D3418 | 396°F | 202°C |
| Particle size | ASTM D3451 | 54 μm | 54 μm |
| Bulk density of powder | ASTM D1895 | 0.017 lb/in3 | 0.48 g/cm3 |
| Density of parts | ASTM D792 | 0.038 lb/cm3 | 1.05 g/in3 |
BASF ULTRASINT TPU
| Properties | Test Method | Typical Values XY-Direction | Typical Values Z-Direction |
|---|---|---|---|
| Tensile Strength/ MPa | DIN 53504, S2 | 9 | 7 |
| Tensile Elongation at Break / % | DIN 53504, S2 | 220 | 120 |
| Tear Resistance (Trouser)/ kN/m | DIN ISO 34 - 1, A | 20 | 16 |
| Tear Resistance (Graves)/ kN/m | DIN ISO 34 - 1, B | 36 | 32 |
| Tensile Modulus/MPa> | ISO 527-2, 1A | 75 | 85 |
| Flexural Modulus/ kN/m | DIN ISO 178 | 75 | 75 |
| Compression Set B (23°C, 72h) / % | DIN ISO 815 - 1 | 20 | 20 |
| Rebound Resilience / % | ASTM 2632 | 63 | 63 |
| Hardness Shore A | DIN ISO 7619 - 1 | 88 | 88 |
| Abrasion Resistance / mm³ | DIN ISO 4649 | 140 | 100 |
| Density | N/A | 1.1g/cm³ | |
| Charpy Impact Strength (notched, -23 °C) / kJ/m2 | DIN EN ISO 179 - 1 | Partial Break | No Break |
| Charpy Impact Strength (notched, -23 °C) / kJ/m2 | DIN EN ISO 179 - 1 | 21 | 29 |
| Rossflex testing (100k cycles, 23°C) | ASTM D1052 | No Cut Growth | |
| Rossflex testing (100k cycles, -10°C) | ASTM D1052 | No Cut Growth | |
| Vicat/A (10 N) / °C | DIN EN ISO 306 | 84 | 96 |
| UL Flammability | UL 94 | HB (1.6-4.2 mm) | HB (1.6-4.2 mm) |
17-4PH
| Properties | Test Method | HP Metal Jet (H900) | Benchmark MPIF (H900) | |
|---|---|---|---|---|
| Ultimate Tensile Strength (MPa) | XYZ | ASTM E8 | µ=1277 (min=1261) | ≥1070 |
| Yield Strength (MPa) | XYZ | µ=1152 (min=1136) | ≥1970 | |
| Elongation(%) | XYZ | µ=6% (min=4%) | ≥14% | |
| Surface Roughness (Ra) 2) | XYZ | 7.8 µm (typical) | ||
| Hardness (HRC) | ASTM E18 | µ=40 (min=33) | 35 (typical) | |
| Density | g/cc | ASTM B311 | µ=7.65 (min=7.63) | 7.5 (typical) |
| % | >96% |
316L
| Properties | Test Method | HP Metal Jet (as sintered) | Benchmark MPIF 35 | |
|---|---|---|---|---|
| Ultimate Tensile Strength (MPa) | XYZ | ASTM E8 | µ=561 (min=557) | ≥450 |
| Yield Strength (MPa) | XYZ | µ=227 (min=216) | ≥140 | |
| Elongation(%) | XYZ | µ=61% (min=59%) | ≥40% | |
| Surface Roughness (Ra) 2) | XYZ | 7.7 µm (typical) | ||
| Hardness (HRC) | ASTM E18 | µ=65 (min=56) | 67 (typical) | |
| Density | g/cc | ASTM B311 | µ=7.86 (min=7.84) | 7.6 (typical) |
| % | >96% |
Need more information? Download the full spec sheet HERE
