The Break-Even Point: MJF 3D Printing vs. Injection Molding

Multi Jet Fusion is an advanced 3D printing technology that uses a multi-agent printing process to produce functional prototypes and production parts in as little as 24 hours. The process begins with a thin layer of powdered material spread across the build platform. A fusing agent is selectively deposited onto the powder in the shape of the part’s cross-section, while a detailing agent is applied to enhance resolution and surface finish. Heat is then used to solidify the fused areas layer by layer. This efficient process allows for exceptional part accuracy, material reusability, and mechanical properties.

It is essential to note that Multi Jet Fusion and injection molding accept similar file formats, with STL and STEP being the preferred file formats for both digital and mold designs.

1. Rapid Prototyping & Multiple Design Iterations: During the prototyping stage, injection molding can be cost-prohibitive when frequent design changes are required. Each new iteration often demands a new mold or tooling modification, which not only adds expense but also significantly extends lead times, delaying valuable testing and ultimately impacting time to market.

Multi Jet Fusion (MJF) 3D printing eliminates this bottleneck. Its fully digital workflow and use of design for additive manufacturing (DfAM) allows engineers and designers to quickly modify CAD files and produce updated prototypes without any tooling changes. This means design iterations can be completed in a matter of hours or days rather than weeks, enabling faster decision-making and real-world testing. Combined with the ability to print multiple design variations in a single build, MJF is an ideal solution for teams that need to test functionality, form, and fit early and often.

2. Complex Geometries and Internal Features: Multi Jet Fusion (MJF) excels in producing complex geometries that would be challenging or near impossible to manufacture with injection molding. This includes features like lattice structures, intricate channels, organic shapes, and internal cavities that require no support structures. Because support structures are not a factor when designing a part and the process involves printing a part layer by layer, MJF 3D printing has far fewer design restrictions. Engineers can consolidate multi-part assemblies into a single seamless component, reducing points of failure and assembly costs. Internal cooling channels, fluid conduits, and even fully enclosed moving parts can be printed in one pass, dramatically simplifying production while expanding design freedom.

3. On-Demand Manufacturing: MJF 3D printing supports just-in-time (JIT) manufacturing for low-to-medium production runs without the lead times associated with mold creation. This flexibility helps reduce warehousing costs and mitigates the risk of overproduction. This is especially valuable for obsolete parts and spare and repair components. With JIT manufacturing, companies can support inventory reduction strategies, making it ideal for lean manufacturing environments where space and resources are optimized.

4. Bridge Production: Multi Jet Fusion excels in low-to-medium-volume runs that bridge the gap between prototyping and full-scale injection molding. This is particularly valuable when initial demand is uncertain or when testing market response before scaling up.

Learn more about how MJF 3D Printing supports Bridge Production →

5. Customization: MJF 3D printing excels in variable data printing, enabling the creation of serialized parts and customized products. Variable data printing allows unique changes to be made to each part within a single production run. For example, different serial numbers, varying textures, or personalized branding can be printed on each part without halting production. Serialization refers to making each part with a unique identifier, which is crucial in industries like aerospace, medical, and consumer electronics for traceability and compliance.

Because the cost of printing the part is not dependent on the complexity of the part, engineers are given more freedom to personalize parts where they see fit. Its digitally driven process allows for real-time design modifications, enabling manufacturers to respond quickly to design changes or personalization requests.

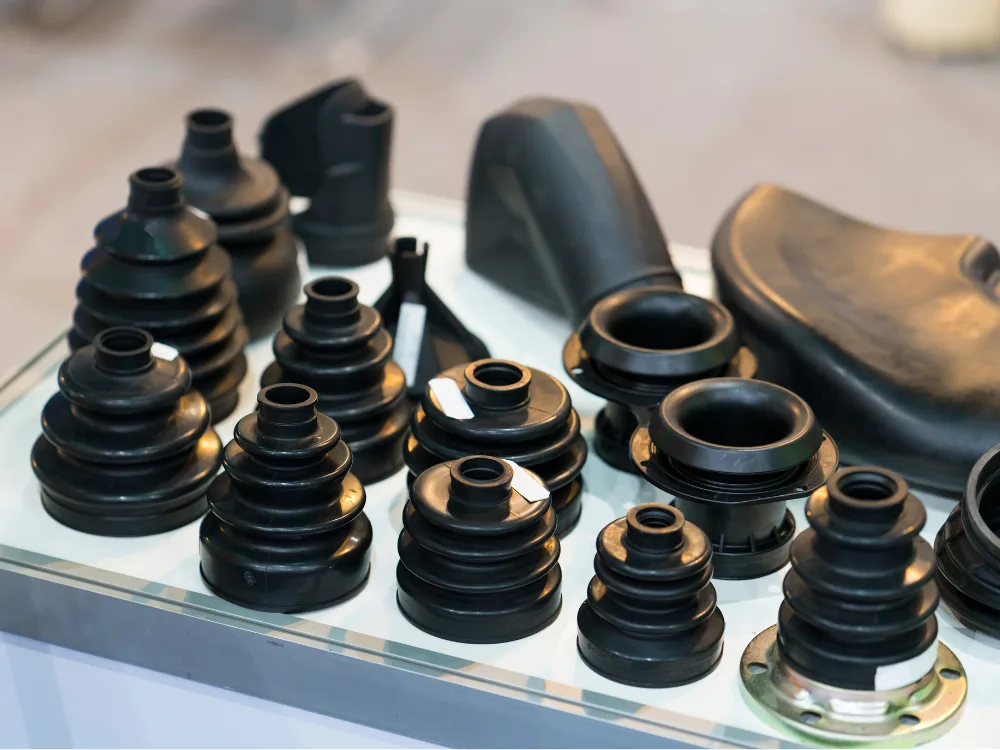

Injection molding is a traditional manufacturing process widely used for high-volume plastic parts. The process begins with creating a mold cavity, which is a reverse image of the final part. Thermoplastic or thermosetting polymers are then heated and injected into the mold under high pressure. The material cools and solidifies in the shape of the mold, after which the part is ejected. The cycle repeats, allowing for consistent parts with smooth surface finishes.

1. Large Production Volumes: Injection molding enables the production of many parts quickly. Once the mold is created, cycle times can be as fast as a few seconds, enabling millions of parts to be produced with minimal variation. The cost per part decreases dramatically as production volume increases, making it the go-to choice for high-demand consumer goods, automotive components, and industrial applications.

2. Tight Tolerances: Injection molding allows for extremely tight tolerances, making it perfect for applications requiring precise dimensional accuracy. The high-pressure injection process forces molten plastic into a mold cavity with extreme force, which allows for the replication of fine details down to a few microns.

However, achieving tight tolerances in injection molding does not come naturally. The mold design plays a critical role in maintaining those tolerance levels. Precise control over the cooling rates within the mold. The use of gate design (where the material enters the mold), and venting (to allow air to escape and avoid defects) are all crucial in minimizing warpage and ensuring part accuracy.

3. Strict Surface Finish Requirements: Injection molding is highly effective when parts require a smooth, high-quality surface finish that demands minimal post-processing. One of the key reasons injection molding excels in this area is the molded surface finish that results from the high-pressure injection process. When the molten material fills the mold cavity, it flows into every intricate detail of the mold’s surface, creating parts with smooth, glossy finishes that often require little or no additional finishing.

That being said, Multi Jet Fusion (MJF) 3D printing also allows for a range of post-processing options to enhance surface finishes such as dyeing, vapor smoothing, tumbling, and bead blasting.

Learn more about MJF 3D Printing post-processing options →

4. Minimal Part Size Limitations: Injection molding offers remarkable flexibility in part size, dictated by the mold and press capacity rather than the fixed build volume seen in 3D printing methods like Multi Jet Fusion (MJF) 3D printing. Machines with clamping forces ranging from 30 tons to over 5,000 tons enable the production of anything from tiny electronic connectors to large automotive panels. Multi-cavity molds further enhance efficiency, allowing multiple identical parts to be produced simultaneously, while family molds can manufacture different parts in one cycle.

One of the most crucial considerations when choosing between Multi Jet Fusion (MJF) 3D printing and injection molding is the break-even point—the production volume at which the total cost of MJF equals the total cost of injection molding. Understanding this threshold can help manufacturers optimize production costs and streamline decision-making.

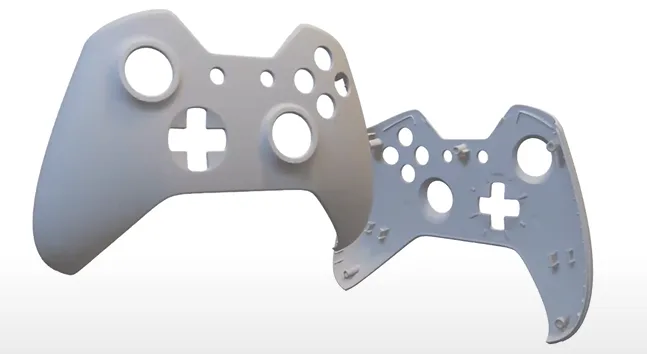

To illustrate this, let’s look at a real-world example involving the production of a video game controller housing. This part featured a volume of 590.1 cm³ and fit within a bounding box of 185 x 31 x 129 mm. When evaluating the unit economics for MJF, the primary cost drivers were the bounding box dimensions, nesting density, and build time.

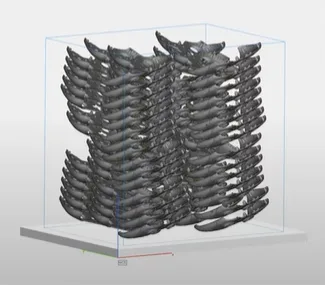

We explored two MJF production nesting strategies:

Ultimately, the quality-optimized approach was selected to meet the project’s specifications. With this method locked in, we proceeded to conduct a cost analysis against injection molding.

Injection molding’s high upfront tooling costs are offset by its low per-part cost at high volumes. In contrast, MJF has no tooling costs, making it ideal for low to medium volumes but less economical as scale increases. To determine the break-even point, we compared:

• Injection Molding Costs: Tooling costs, material costs, and per-part costs for high-volume runs.
• MJF Costs: Quality-optimized part price of $22–$24 per unit with zero tooling costs.

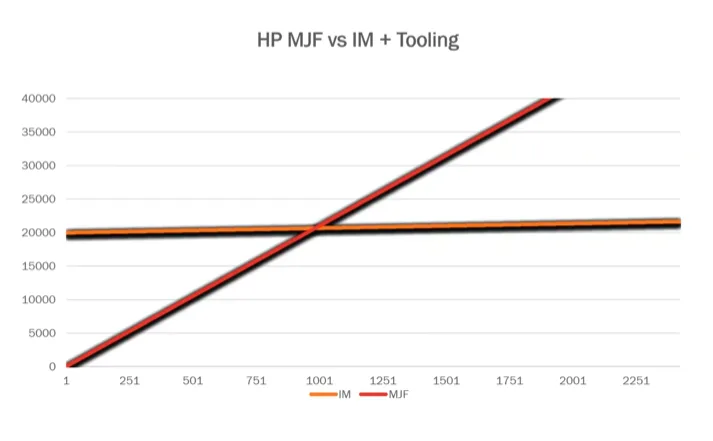

The analysis showed that the break-even point landed around 1,025 units. Below this volume, MJF was more cost-effective due to the lack of tooling and faster turnaround. Beyond this volume, injection molding’s lower per-part cost began to offset its initial tooling investment, making it the preferred choice for mass production.

The choice between Multi Jet Fusion (MJF) 3D printing and injection molding doesn’t always have to be an either-or decision. In fact, many manufacturers are increasingly adopting a hybrid manufacturing strategy that leverages the strengths of both technologies to optimize cost, speed, scalability, and quality.

In the early stages of product development, MJF 3D printing shines with its ability to produce rapid prototypes and low-to-medium volume runs without the need for costly tooling. Design iterations can be executed swiftly, allowing engineers to fine-tune parts and validate performance before committing to mass production.

Once demand solidifies and volumes rise beyond the break-even point, the transition to injection molding becomes a cost-effective choice. At this stage, the initial tooling investment is justified by dramatically lower per-part costs and scalability into the millions of units.

The hybrid approach effectively minimizes market risks and maximizes manufacturing efficiency. It enables companies to react quickly to market shifts, validate designs with minimal upfront costs, and then seamlessly scale into full production.
