PA 12 FR Description

PA 12 FR is a high-performance, flame-retardant nylon material designed for applications requiring superior fire safety, durability, and efficiency. This halogen-free material meets UL94 V0 flammability standards at 2.5mm thickness, ensuring reliable performance in demanding environments. With a 60% powder reusability ratio, PA 12 FR minimizes waste while reducing overall production costs. It also delivers a smooth surface finish straight from the printer, making it ideal for functional prototypes and end-use parts in industries such as aerospace, automotive, and electronics.

Explore Datasheet

Collaborating with Industry Leaders

Key Attributes

PA 12 FR Benefits

Halogen-free material
UL94 certified
60% powder reusability ratio
Premium surface finish

PA 12 FR Properties

Tensile strength: XY (46 MPa), Z (46 MPa)
Tensile Elongation @ break: XZ (4.7%), ZX (4%)
Part density: 1.13 g/cm³
IZOD Impact Notched: XY (2.8 J/m), Z (2.7 J/m)
Heat Deflection Temperature @ 0.45 MPa: 341.6°F (172°C)

PA 12 FR Applications

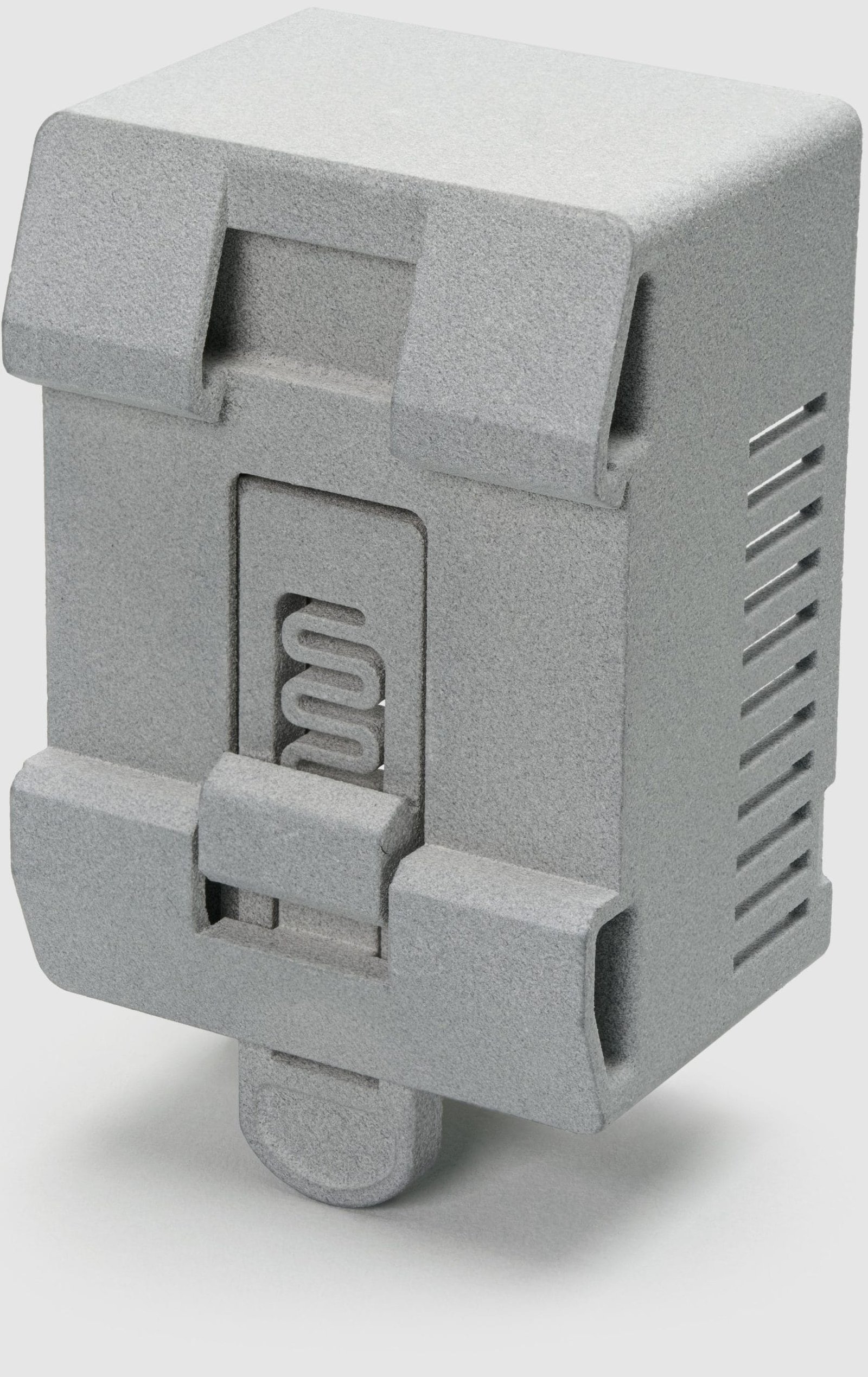

Electrical components
Fluidic systems
Robotics
Machinery

Powered by Multi Jet Fusion

Nylon PA 12 FR leverages the advanced capabilities of Multi Jet Fusion (MJF) 3D printing technology. MJF 3D printing offers unparalleled benefits for PA 12 FR 3D printing including:

High Precision and Detail: MJF ensures excellent surface quality and intricate detailing, achieving layer thicknesses as fine as 80 microns and dimensional tolerances within ±0.012 in., ensuring high accuracy.

Fast Production Speed: MJF 3D printing can produce parts up to 10 x faster than SLS 3D printing, making it ideal for rapid manufacturing and serial production.

Consistent Quality: MJF provides consistent mechanical properties across builds with a repeatability of ±0.3%, ensuring reliable and repeatable results.

Efficient Material Usage: MJF 3D printing with PA 12 FR material utilizes up to 80% of the material, significantly reducing waste and making it a cost-effective solution.

Learn more
