17-4 PH Description

Stainless steel 17-4 PH uses HP Metal Jet 3D printing technology to create parts that demand excellent durability, corrosion resistance, and mechanical properties. This precipitation-hardening stainless steel achieves exceptional detail and complex geometries while maintaining performance under extreme conditions. Paired with HP Metal Jet’s precision and scalability, the material is suitable for low-to-high volume production runs.

Learn more

Collaborating with Industry Leaders

17-4 PH Benefits

  • High strength and durability
  • Corrosion resistance
  • Greater weight-to-strength properties compared to 316L
  • A versatile metal

17-4 PH Properties

  • Tensile strength (MPa): μm=1257 (as-sintered = 945)
  • Yield strength (MPa) μm=1072 (as-sintered = 713)
  • Elongation (%): μm = 9% (as-sintered = 7.1%)
  • Surface roughness (Ra): 6.4 μm (as-sintered = 7.11 μm)
  • Hardness (HRC): μm = 38 (as-sintered = 22)
  • Density (g/cc): μm = 7.66 (as-sintered = 7.67) (>98%)

17-4 PH Applications

  • Aerospace components
  • Food processing equipment
  • Nuclear components
  • Marine parts
  • Chemical processing equipment
  • Motor and pump shafts
  • Oil and gas industry

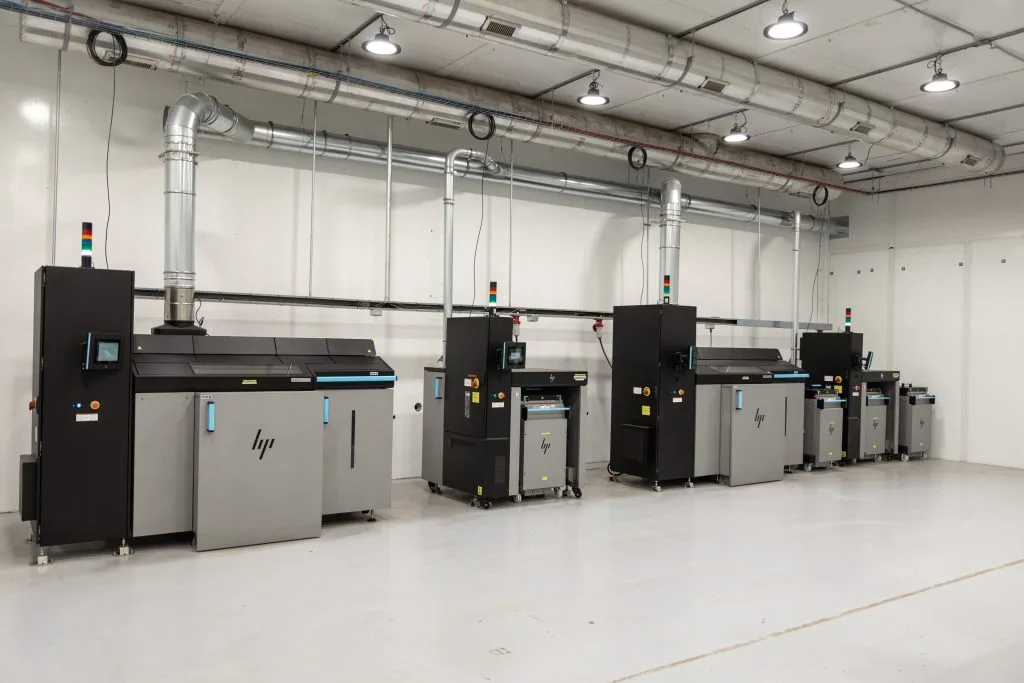

Powered by HP Metal Jet

Stainless Steel 17-4 PH leverages the advanced capabilities of HP Metal Jet S100 3D printing technology. Met Jet 3D printing offers unparalleled benefits including:

High Productivity and Scalability: Unlike MIM, Metal Jet eliminates the need for a debinding process to remove wax, saving up to 20 hours. Furthermore, Metal Jet has multiple printers and build units, enabling continuous production runs and scalability.

Exceptional Resolution: HP Metal Jet offers a print resolution of up to 1200 dpi, allowing 17-4 PH parts to achieve intricate details and fine features without sacrificing strength or mechanical performance.

Reduced Waste and Material Efficiency: HP Metal Jet minimizes material waste by utilizing nearly 100% of the powder during the printing process.

Efficient Material Usage: HP Metal Jet 17-4 PH parts meet or exceed the mechanical properties of metal injection molding (MIM) parts, with ultimate tensile strengths of up to 1277 MPa and hardness ratings reaching 40 HRC.

Learn more

ITAR Registered

Endeavor 3D is ITAR registered, enabling us to work on projects involving defense-related articles and services. This certification ensures that all our processes and technologies comply with the stringent U.S. government regulations.

Download our ITAR Registration Form
